Tutorial on real-time time-dependent DFT¶
This tutorial aims at showing how to perform Real-Time TDDFT (RT-TDDFT) calculation using Abinit to compute the dielectric function of Diamond here.
Warning
RT-TDDFT is under active development and should thus be used with caution!
If you have not yet done any of the basic tutorials it might be useful to do at least the first three: basic1, basic2 and basic3. It could also be useful that you know a little bit about PAW calculations using Abinit. If you are interested you can follow the first tutorial on PAW: PAW1.
This tutorial should take about two hours to complete, depending on the amount of computing power you have access to and how much of the convergence study you decide to do.
Note
Supposing you made your own installation of ABINIT, the input files to run the examples are in the ~abinit/tests/ directory where ~abinit is the absolute path of the abinit top-level directory. If you have NOT made your own install, ask your system administrator where to find the package, especially the executable and test files.
In case you work on your own PC or workstation, to make things easier, we suggest you define some handy environment variables by executing the following lines in the terminal:
export ABI_HOME=Replace_with_absolute_path_to_abinit_top_level_dir # Change this line
export PATH=$ABI_HOME/src/98_main/:$PATH # Do not change this line: path to executable
export ABI_TESTS=$ABI_HOME/tests/ # Do not change this line: path to tests dir
export ABI_PSPDIR=$ABI_TESTS/Pspdir/ # Do not change this line: path to pseudos dir
Examples in this tutorial use these shell variables: copy and paste
the code snippets into the terminal (remember to set ABI_HOME first!) or, alternatively,
source the set_abienv.sh script located in the ~abinit directory:
source ~abinit/set_abienv.sh
The ‘export PATH’ line adds the directory containing the executables to your PATH so that you can invoke the code by simply typing abinit in the terminal instead of providing the absolute path.
To execute the tutorials, create a working directory (Work*) and
copy there the input files of the lesson.
Most of the tutorials do not rely on parallelism (except specific tutorials on parallelism). However you can run most of the tutorial examples in parallel with MPI, see the topic on parallelism.
1. Basics of RT-TDDFT¶
Time-dependent DFT (TDDFT) has been developed in the 1980s as a generalization of DFT to the time-dependent case and is based on similar theorems than the standard Hohenberg and Kohn theorems. They were developed, in the general case, by Runge and Gross [Runge1984] establishing a one-to-one correspondence between the time-dependent potential and the time-dependent density \(n(\vec{r},t)\). In the spirit of Kohn and Sham, Runge and Gross introduced a non-interacting system evolving in an effective time-dependent potential such that its density is the same as the one of the interacting system of interest. Further work by Van Leeuwen [VanLeeuwen1999] proved the existence of this effective potential under some rather mild approximations.
Within this framework, one ends up with the so-called time-dependent Kohn-Sham (TDKS) equations that have the same form as the time-dependent Shrödinger equation \begin{equation} i\partial_t \psi_{nk}(\vec{r},t) = \hat{H} \psi_{nk}(\vec{r},t), \end{equation} but with the Hamiltonian being now a functional of the density and the initial state \(\Psi^0\), \(\hat{H} \equiv \hat{H}[n,\Psi^0]\). Note that formally the Hamiltonian is a functional of the density at all previous times ie. it depends on the whole history. This is quite complicated to account for as it requires a functional that is non-local both in time and space. In the following, we will thus always work in the so-called adiabatic approximation which discards this dependence on the past history and consider that the Hamiltonian is a functional of the density at time \(t\) only.
In the real-time formulation of TDDFT (RT-TDDFT), the TDKS equations are numerically integrated in real-time by discretizing the time with a time step \(\Delta t\). The propagator to go from time \(t\) to \(t+\Delta t\) can be approximated as \begin{equation} \hat{U}(t,t+\Delta t) = \exp\left(-i\hat{H}\Delta t\right). \end{equation} In the present implementation only two simple propagators are available: the so-called exponential rule (ER) and exponential midpoint rule (EMR) propagators. In both of them, the exponential in the propagator is approximated by a Taylor expansion, usually up to fourth order as it was found to be the best choice to ensure good stability while minimizing computation time [Castro2004]. These two propagators differ only by the choice of the Hamiltonian used in the exponential. The simplest ER propagator uses the Hamiltonian at time \(t\), while the EMR propagator uses the Hamiltonian at time \(t+\Delta t/2\). This last choice ensures the correct time reversal symmetry and is thus supposed to be better than the simple ER propagator. It also introduces a self-consistency since one needs the density at time \(t+\Delta t/2\) to evolve the orbitals at time \(t\). This is solved by a predictor-corrector scheme. See [Castro2004] for more information on propagators for the TDKS equations including the ER and EMR propagators. More general information on TDDFT including its real-time formulation can be found for instance in [Ullrich2011].
TDDFT is usually used to study the response of a system to a time-dependent perturbation. In Abinit it is possible to apply an impulse external electric field that allows the computation of associated response functions: the electronic conductivity and the dielectric function. This tutorial describes how to perform such calculation with Abinit.
Note
The application of an external electric field in RT-TDDFT is only available in PAW. We will thus work in this formalism throughout this tutorial.
2. Ground state of diamond¶
Before beginning, you might consider working in a different subdirectory, as for the other tutorials.
Why not Work_rttddft? In what follows, the name of files are mentioned as if you were in such a
subdirectory in $ABI_TESTS/tutorial.
All the input files can be found in the $ABI_TESTS/tutorial/Input directory.
Important
You can compare your results with reference output files located in
$ABI_TESTS/tutorial/Refs directories (for the present tutorial they
are named trttddft_*.abo).
The first thing that a real-time TDDFT (RT-TDDFT) calculation needs is a set of initial orbitals. In the following we will start our calculations from the ground state KS orbitals. Thus let us start by computing the ground state orbitals of diamond. This system was actually treated in details in the first PAW tutorial. If you have not done this tutorial PAW1 it might be a good idea to do it first.
The input file trttddft_1.abi can be used to compute the ground state of diamond in PAW with a description that is similar to what was used in the first PAW tutorial. Notably, we use the same functional (LDA-PW) and the same atomic dataset. Copy the trttddft_1.abi file in your work directory,
cd $ABI_TESTS/tutorial/Input
mkdir Work_rttddft
cd Work_rttddft
cp ../trttddft_1.abi .
and execute Abinit:
abinit trttddft_1.abi >& log
The code should run quickly.
You can have a look at the input file. It is similar to the input files from the first PAW tutorial.
# Input for RT-TDDFT tutorial # Ground-state calculation # Converged ecut and ngkpt for total energy # Diamond at equilibrium volume #Definition of the unit cell acell 3*3.53 angstrom # Lengths of the primitive vectors (equilibrium volume) rprim # 3 orthogonal primitive vectors (FCC lattice) 0.0 1/2 1/2 1/2 0.0 1/2 1/2 1/2 0.0 nsym 0 # Automatic detection of symetries #Definition of the atom types and pseudopotentials ntypat 1 # There is only one type of atom znucl 6 # Atomic number of the possible type(s) of atom. Here carbon. pp_dirpath "$ABI_PSPDIR" # Path to the directory where # pseudopotentials for tests are stored pseudos "Psdj_paw_pw_std/C.xml" # PAW atomic data for Carbon #Definition of the atoms natom 2 # There are two atoms typat 1 1 # They both are of type 1, that is, Carbon xred # Location of the atoms: Diamond structure 0.0 0.0 0.0 # Triplet giving the reduced coordinates of atom 1 1/4 1/4 1/4 # Triplet giving the reduced coordinates of atom 2 #Definition of bands and occupation numbers nband 8 # Compute 8 bands (4 occupied, 4 empty) nbdbuf 2 # No need to converge the last two empty bands occopt 1 # Automatic generation of occupation numbers, as a semiconductor #Numerical parameters of the calculation : planewave basis set and k point grid ecut 18 # Maximal plane-wave kinetic energy cut-off, in Hartree pawecutdg 36 # Max. plane-wave kinetic energy cut-off, in Ha, for the PAW double grid kptopt 1 # Automatic generation of k points, taking into account the symmetry ngkpt 6 6 6 # k-points grid based on the primitive vectors nshiftk 4 # of the reciprocal space, repeated four times, shiftk # with different shifts: 0.5 0.5 0.5 0.5 0.0 0.0 0.0 0.5 0.0 0.0 0.0 0.5 istwfk *1 # Wavefunctions are complex for all k-points # not needed here but necessary for further RT-TDDFT runs #Parameters for the SCF procedure nstep 20 # Maximum number of SCF cycles tolvrs 1.0d-10 # Will stop when, twice in a row, the difference # between two consecutive evaluations of potential residual # differ by less than tolvrs #Miscelaneous parameters prtwf 1 # Print wavefunctions (required for following RT-TDDFT runs) prtden 0 # Do not print density prteig 0 # Do not print eigenvalues prtebands 0 # Do not print ebands ############################################################## # This section is used only for regression testing of ABINIT # ############################################################## #%%<BEGIN TEST_INFO> #%% [setup] #%% executable = abinit #%% test_chain = trttddft_1.abi, trttddft_2.abi, trttddft_3.abi #%% [files] #%% files_to_test = #%% trttddft_1.abo, tolnlines= 0, tolabs= 0.0, tolrel= 0.0, fld_options= -easy; #%% [paral_info] #%% max_nprocs = 7 #%% [extra_info] #%% authors = F. Brieuc #%% keywords = RTTDDFT, PAW #%% description = #%% Input for RT-TDDFT tutorial #%% Diamond at equilibrium volume #%% Ground-state calculation #%%<END TEST_INFO>
The values of the plane wave cut-off energy ecut, the double grid (PAW) cut-off energy pawecutdg and the \(k\)-points grid defined by ngkpt are set to ensure a relatively good convergence of the total energy and pressure. The cell parameter acell is chosen to work at the equilibrium volume. Finally, we ask Abinit to write the wavefunctions in a file by setting prtwf to 1, as we will need to read this file to start the following real-time calculations.
Tip
If you look carefully at the input, you may notice that the variable ecutsm was not set. That is because RT-TDDFT is not compatible with that option and it is thus better to generate the initial orbitals without it as well. You may also notice that we set the variable istwfk to 1 for all \(k\)-points, that is because we cannot take advantage of time-reversal symmetry for the storage of wavefunctions in RT-TDDFT.
3. Real-time TDDFT and stability¶
Now that we have a set of initial orbitals we can run some time-dependent calculations. You can copy the input file trttddft_2.abi
cp ../trttddft_2.abi .
and run Abinit:
abinit trttddft_2.abi >& log
The code should run quickly.
If you have a look at the input file you will see that it is almost exactly the same as the previous one except that a few keywords were added: optdriver was set to 9 which tells the driver of Abinit to run real-time TDDFT and the keyword getwfk_filepath was used to read the initial wavefunctions from the previous ground state calculation.
# Input for RT-TDDFT tutorial # RT-TDDFT calculation # with default values for all parameters # Diamond at equilibrium volume # RT-TDDFT section optdriver 9 # RT-TDDFT getwfk_filepath "trttddft_1o_WFK" #Definition of the unit cell acell 3*3.53 angstrom # Lengths of the primitive vectors (equilibrium volume) rprim # 3 orthogonal primitive vectors (FCC lattice) 0.0 1/2 1/2 1/2 0.0 1/2 1/2 1/2 0.0 nsym 0 # Automatic detection of symetries #Definition of the atom types and pseudopotentials ntypat 1 # There is only one type of atom znucl 6 # Atomic number of the possible type(s) of atom. Here carbon. pp_dirpath "$ABI_PSPDIR" # Path to the directory where # pseudopotentials for tests are stored pseudos "Psdj_paw_pw_std/C.xml" # PAW atomic data for Carbon #Definition of the atoms natom 2 # There are two atoms typat 1 1 # They both are of type 1, that is, Carbon xred # Location of the atoms: Diamond structure 0.0 0.0 0.0 # Triplet giving the reduced coordinates of atom 1 1/4 1/4 1/4 # Triplet giving the reduced coordinates of atom 2 #Definition of bands and occupation numbers nband 8 # Compute 8 bands (4 occupied, 4 empty) nbdbuf 2 # No need to converge the last two empty bands occopt 1 # Automatic generation of occupation numbers, as a semiconductor #Numerical parameters of the calculation : planewave basis set and k point grid ecut 18 # Maximal plane-wave kinetic energy cut-off, in Hartree pawecutdg 36 # Max. plane-wave kinetic energy cut-off, in Ha, for the PAW double grid kptopt 1 # Automatic generation of k points, taking into account the symmetry ngkpt 6 6 6 # k-points grid based on the primitive vectors nshiftk 4 # of the reciprocal space, repeated four times, shiftk # with different shifts: 0.5 0.5 0.5 0.5 0.0 0.0 0.0 0.5 0.0 0.0 0.0 0.5 istwfk *1 # Wavefunctions are complex for all k-points #Parameters for the SCF procedure nstep 20 # Maximum number of SCF cycles tolvrs 1.0d-10 # Will stop when, twice in a row, the difference # between two consecutive evaluations of potential residual # differ by less than tolvrs #Miscelaneous parameters prtwf 0 # Do not print wavefunctions prtden 0 # Do not print density prteig 0 # Do not print eigenvalues prtebands 0 # Do not print ebands ############################################################## # This section is used only for regression testing of ABINIT # ############################################################## #%%<BEGIN TEST_INFO> #%% [setup] #%% executable = abinit #%% test_chain = trttddft_1.abi, trttddft_2.abi, trttddft_3.abi #%% [files] #%% files_to_test = #%% trttddft_2.abo, tolnlines= 0, tolabs= 0.0, tolrel= 0.0, fld_options= -medium; #%% trttddft_2o_TDENER, tolnlines= 0, tolabs= 0.0, tolrel= 0.0, fld_options= -medium; #%% [paral_info] #%% max_nprocs = 7 #%% [extra_info] #%% authors = F. Brieuc #%% keywords = RTTDDFT, PAW #%% description = #%% Input for RT-TDDFT tutorial #%% Diamond at equilibrium volume #%% RT-TDDFT calculation with default values for all parameters #%%<END TEST_INFO>
If you have a look at the output (trttddft_2.abo) or the log file you will see that Abinit has read the previous ground state orbitals and started a RT-TDDFT run as expected. However, it only performed one step which is not very useful. That is because we did not set the number of time steps to perform. We can do so using the variable ntime. Change the value of ntime by editing the input file and try running maybe about 50 time steps for now to get a feeling of the time it takes. You may notice that additional files have been created. The file called TD_RESTART contains some information needed to restart a RT-TDDFT run if one wants to continue a calculation. In that case, the variable td_restart should be set to 1. The file trttddft_2o_TDENER contains the total energy and its decomposition into the different contributions as a function of time. You can have a look at this file and try to plot the total energy as well as some energy contributions. You should find that the total energy as well as all contributions remain constant. This is to be expected as we started from the ground state orbitals which are stationary states. If we do not perturb the system then running a time-dependent calculation does not make much sense. Various type of perturbations could be applied such as an external electric field which will be discussed in the following. But let us stay in that special stationary case for now to study the stability of the integration.
In order to do so, copy the input file trttddft_3.abi and run Abinit.
# Input for RT-TDDFT tutorial # RT-TDDFT calculation # using different time steps # Diamond at equilibrium volume ndtset 4 # RT-TDDFT section optdriver 9 # RT-TDDFT getwfk_filepath "trttddft_1o_WFK" td_exp_order 4 # Study of the stability of the integration with dtele # ntime chosen such that the integration time remains constant dtele1 0.05 dtele2 0.10 dtele3 0.15 dtele4 0.20 ntime1 200 ntime2 100 ntime3 67 ntime4 50 #Definition of the unit cell acell 3*3.53 angstrom # Lengths of the primitive vectors (equilibrium volume) rprim # 3 orthogonal primitive vectors (FCC lattice) 0.0 1/2 1/2 1/2 0.0 1/2 1/2 1/2 0.0 nsym 0 # Automatic detection of symetries #Definition of the atom types and pseudopotentials ntypat 1 # There is only one type of atom znucl 6 # Atomic number of the possible type(s) of atom. Here carbon. pp_dirpath "$ABI_PSPDIR" # Path to the directory where # pseudopotentials for tests are stored pseudos "Psdj_paw_pw_std/C.xml" # PAW atomic data for Carbon #Definition of the atoms natom 2 # There are two atoms typat 1 1 # They both are of type 1, that is, Carbon xred # Location of the atoms: Diamond structure 0.0 0.0 0.0 # Triplet giving the reduced coordinates of atom 1 1/4 1/4 1/4 # Triplet giving the reduced coordinates of atom 2 #Definition of bands and occupation numbers nband 8 # Compute 8 bands (4 occupied, 4 empty) nbdbuf 2 # No need to converge the last two empty bands occopt 1 # Automatic generation of occupation numbers, as a semiconductor #Numerical parameters of the calculation : planewave basis set and k point grid ecut 18 # Maximal plane-wave kinetic energy cut-off, in Hartree pawecutdg 36 # Max. plane-wave kinetic energy cut-off, in Ha, for the PAW double grid kptopt 1 # Automatic generation of k points, taking into account the symmetry ngkpt 6 6 6 # k-points grid based on the primitive vectors nshiftk 4 # of the reciprocal space, repeated four times, shiftk # with different shifts: 0.5 0.5 0.5 0.5 0.0 0.0 0.0 0.5 0.0 0.0 0.0 0.5 istwfk *1 # Wavefunctions are complex for all k-points #Parameters for the SCF procedure nstep 20 # Maximum number of SCF cycles tolvrs 1.0d-10 # Will stop when, twice in a row, the difference # between two consecutive evaluations of potential residual # differ by less than tolvrs #Miscelaneous parameters prtwf 0 # Do not print wavefunctions prtden 0 # Do not print density prteig 0 # Do not print eigenvalues prtebands 0 # Do not print ebands ############################################################## # This section is used only for regression testing of ABINIT # ############################################################## #%%<BEGIN TEST_INFO> #%% [setup] #%% executable = abinit #%% test_chain = trttddft_1.abi, trttddft_2.abi, trttddft_3.abi #%% expected_failure = yes #%% [files] #%% files_to_test = #%% trttddft_3o_DS1_TDENER, tolnlines= 0, tolabs= 0.0, tolrel= 0.0, fld_options= -medium; #%% trttddft_3o_DS2_TDENER, tolnlines= 0, tolabs= 0.0, tolrel= 0.0, fld_options= -medium; #%% trttddft_3o_DS3_TDENER, tolnlines= 0, tolabs= 0.0, tolrel= 0.0, fld_options= -medium; #%% [paral_info] #%% max_nprocs = 7 #%% [extra_info] #%% authors = F. Brieuc #%% keywords = RTTDDFT, PAW #%% description = #%% Input for RT-TDDFT tutorial #%% Diamond at equilibrium volume #%% RT-TDDFT calculation with different values of dtele #%%<END TEST_INFO>
This run takes a little longer, you can parallelize it by launching Abinit with mpirun if you have access to several cores and that your executable has been correctly compiled with MPI, see topic_parallelism. A basic parallelisation over \(k\)-points by simply running Abinit with mpirun is enough. There are 28 \(k\)-points and the best is of course to use a number that divides it, so you could use 2, 4, 7, 14 or even 28 processors.
The time-dependent Kohn-Sham (TDKS) equations are highly non-linear and their integration can be a little tricky which is why there exists many different propagators (see [Castro2004]). The stability of the integration depends essentially on the propagator and the time step dtele. As of now, only simple propagators, namely the exponential rule (ER) and the exponential midpoint rule (EMR) propagators, are implemented in Abinit. The keyword td_propagator can be used to setup the integrator: if set to 0 then the simple ER propagator is used which is the default, if set to 1 then the EMR propagator is used. Here, we will only used the ER propagator for simplicity since it is enough in this case. If you look at the input file you can see that there are several datasets now in which the time step for the electrons dtele changes. The number of time steps also changes to ensure that we integrate the TDKS equations over a fix amount of time (~ 0.5 fs here).
If you look at the output or log file, you will see that the last dataset stopped with the following error:
The integrated density has changed by more than 10%!
The integration is unstable, you should probably decrease the timestep dtele.
That is because the integration was not stable. The code stopped because the electronic density integrated over the whole volume, which should be equal to the total number of electrons, has changed by more than 10 %. Indeed this quantity should be constant and is used by Abinit to check the stability. Its value is written in the output files and one can thus easily check its time evolution for instance by typing
grep 'Integrated density' trttddft_3.abo

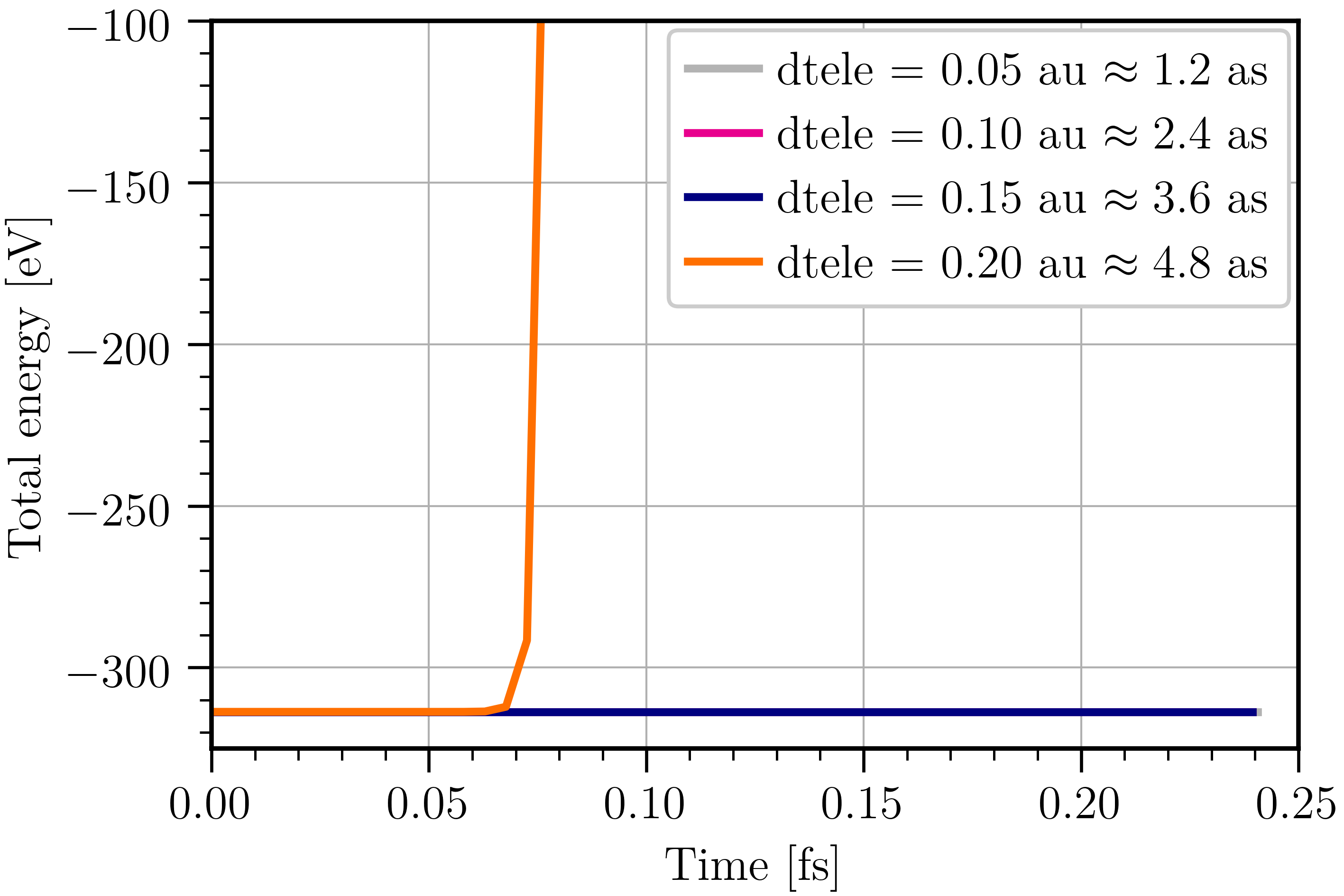

One can also check the stability of the integration by checking that the total energy is well conserved during the integration. In order to do so, you can simply plot the third column of the file trttddft_3o_TDENER and you should get something similar to the following figure.
The integration becomes clearly unstable for time steps greater than \(0.15\) au. Unfortunately, the integration can become unstable for longer integration times even if it appears stable here. We will thus keep a timestep of \(0.1\) au to be safe.
Note
The order of the Taylor approximation used to approximate the exponential in the propagator will also have an important impact on the stability of the integration. If you are interested, you can change the value of the variable td_exp_order to investigate its effect on the stability. You should find that the default value of 4 is the best choice.
4. Time-dependent electric field and current density¶
We can now use RT-TDDFT to study the response of diamond to an external impulse electric field. Such calculations allow the computation of the associated response functions ie. the electronic conductivity from which one can also obtain the dielectric function as we will see in the last part of this tutorial.
The external electric field is added through an additional vector potential \(\vec{A}(t)\) in the Hamiltonian \begin{equation} \hat{H} = \frac{1}{2} \left[-i\vec{\nabla} + \vec{A}(t) \right]^2 + v_{KS}(\vec{r},t). \end{equation} This perturbation will generate a time-dependent macroscopic current density \begin{equation} \vec{J}(t) = \frac{i}{\Omega} \sum_{nk} \left[ w_k f_{nk} \langle \psi_{nk}(t) | \vec{\nabla} | \psi_{nk}(t) \rangle \right] - \frac{N\vec{A}(t)}{\Omega}, \end{equation} with \(w_k\) the weight of the \(k\)-point, \(f_{nk}\) the occupations, \(N\) the total number of electrons and \(\Omega\) the volume of the simulation cell. In practice, the expressions for the Hamiltonian and the current density include additional term coming from PAW that we do not include here for clarity. Moreover, there are some subtleties related to gauge invariance and the non locality of the PAW transformation that we decide not to discuss here for simplicity.
The application of an external electric field is set by switching the value of the variable td_ef_type to 1. This will trigger the application of an impulse external electric field \(\vec{E}(t) = \vec{E}_0\delta(t-t_0)\). The associated vector potential is given by \begin{equation} \vec{A}(t) = -{\int}_0^t \vec{E}(t’)dt’ = -\vec{E}_0 \Theta(t-t_0), \end{equation} with \(\Theta(t-t_0)\) the Heaviside function. The intensity is given by the parameter td_ef_ezero in atomic units, the direction is given by the variable td_ef_pol and the value of the time at which this Dirac pulse is applied is controlled by the parameter td_ef_tzero. By default the field is applied along \(\vec{e}_x\), its intensity is \(0.1\) au and it is applied at time \(t=0\). We will keep most of these default values here and simply change \(t_0\) so we can clearly see the time at which the field is switched on.
Note
Only impulse electric fields are implemented for now. Note that this is the best choice if one is interested in response functions as such a perturbation is exciting all frequencies equally.
In order to launch the next calculation with the electric field, you should first copy the input trttddft_4.abi and run Abinit again. From now on the calculations will take more time and, if you can, it may be better to run in parallel. That is because we have to work now in the full Brillouin zone. Indeed the application of the time-dependent electric field will break some symmetries and we thus cannot make use of them to reduce the number of \(k\)-points. The variable kptopt is thus set to 3 and, as a consequence, the total number of \(k\)-points is now much larger. If you have a look at the input file you can see that the value of ngkpt used to define the \(k\)-points grid was reduced to 2 2 2 instead of the previous 6 6 6 to decrease the computation time. Unfortunately, this is not enough to converge as we will see in the following. You can have a look at the input file.
# Input for RT-TDDFT tutorial # RT-TDDFT calculation # Diamond at equilibrium volume # First dataset: ground state calculation # Second dataset: RT-TDDFT with impulsive electric field ndtset 2 # RT-TDDFT section optdriver2 9 getwfk2 -1 # Read initial orbitals from the first dataset dtele 0.10 # Electronic time step ntime 100 # Maximum number or time step td_ef_type 1 # Impulse electric field td_ef_tzero 1.0 # applied at time tzero #Definition of the unit cell acell 3*3.53 angstrom # Lengths of the primitive vectors (equilibrium volume) rprim # 3 orthogonal primitive vectors (FCC lattice) 0.0 1/2 1/2 1/2 0.0 1/2 1/2 1/2 0.0 nsym 0 # Automatic detection of symetries #Definition of the atom types and pseudopotentials ntypat 1 # There is only one type of atom znucl 6 # Atomic number of the possible type(s) of atom. Here carbon. pp_dirpath "$ABI_PSPDIR" # Path to the directory where # pseudopotentials for tests are stored pseudos "Psdj_paw_pw_std/C.xml" # PAW atomic data for Carbon #Definition of the atoms natom 2 # There are two atoms typat 1 1 # They both are of type 1, that is, Carbon xred # Location of the atoms: Diamond structure 0.0 0.0 0.0 # Triplet giving the reduced coordinates of atom 1 1/4 1/4 1/4 # Triplet giving the reduced coordinates of atom 2 #Definition of bands and occupation numbers nband 8 # Compute 8 bands (4 occupied, 4 empty) nbdbuf 2 # No need to converge the last two empty bands occopt 1 # Automatic generation of occupation numbers, as a semiconductor #Numerical parameters of the calculation : planewave basis set and k point grid ecut 18 # Maximal plane-wave kinetic energy cut-off, in Hartree pawecutdg 36 # Max. plane-wave kinetic energy cut-off, in Ha, for the PAW double grid kptopt 3 # Automatic generation of k points, no taking symmetry into account ngkpt 2 2 2 # k-points grid based on the primitive vectors nshiftk 4 # of the reciprocal space, repeated four times, shiftk # with different shifts: 0.5 0.5 0.5 0.5 0.0 0.0 0.0 0.5 0.0 0.0 0.0 0.5 istwfk *1 # Wavefunctions are complex for all k-points #Parameters for the SCF procedure nstep 20 # Maximal number of SCF cycles tolvrs 1.0d-10 # Will stop when, twice in a row, the difference # between two consecutive evaluations of potential residual # differ by less than tolvrs tolwfr 1.0d-20 # Additional convergence criterion on the largest residual # to ensure that wavefunctions are also tighlty converged # as they will be used as initial conditions for the following # RT-TDDFT run #Miscelaneous parameters prtwf1 1 # Print wavefunctions (required for following RT-TDDFT runs) prtwf2 0 # Do not print wavefunctions at each step during RT-TDDFT prtden 0 # Do not print density prteig 0 # Do not print eigenvalues prtebands 0 # Do not print ebands prtcurrent 1 # Print current ############################################################## # This section is used only for regression testing of ABINIT # ############################################################## #%%<BEGIN TEST_INFO> #%% [setup] #%% executable = abinit #%% [files] #%% files_to_test = #%% trttddft_4.abo, tolnlines= 0, tolabs= 0.0, tolrel= 0.0, fld_options= -medium ; #%% trttddft_4o_DS2_TDENER, tolnlines= 0, tolabs= 0.0, tolrel= 0.0, fld_options= -medium ; #%% trttddft_4o_DS2_TDCURRENT, tolnlines= 0, tolabs= 0.0, tolrel= 0.0, fld_options -=medium ; #%% [paral_info] #%% max_nprocs = 8 #%% [extra_info] #%% authors = F. Brieuc #%% keywords = RTTDDFT, PAW #%% description = #%% Input for RT-TDDFT tutorial #%% Diamond at equilibrium volume #%% RT-TDDFT calculation with TD electric field #%%<END TEST_INFO>
A few additional keywords td_ef_type and td_ef_tzero were added. Moreover, we now use two datasets. The first one performs a ground state calculation to generate the initial wavefunctions while the second one runs the RT-TDDFT calculation. This way will be easier if we want to do a convergence study with respect to different parameters such as ecut or ngkpt as we will need to generate the ground state wavefunctions with the same parameters every time. Two new files were created: trttddft_4o_TDEFIELD which contains the time evolution of the electric field as well as the associated vector potential and trttddft_4o_TDCURRENT which contains the time evolution of the macroscopic current density. If you look at this file you can see that a macroscopic current density is induced by the application of the electric field for \(t \geq t_0\). Before \(t_0\), there is no global current in the system as expected. That would not be the case if we did not set kptopt to 3. Moreover, as we applied an electric field in the \(x\) direction, the induced current density only appeared in that direction. That would also not have been the case if we did not use kptopt 3.
Convergence study (Optional)¶
We should now make sure that all the parameters are correctly chosen to ensure a proper convergence of the current density as this is the central property here. This will require to launch several calculations with varying parameters which can take some time especially if you do not have access to several processors to run in parallel. In that case, it is probably better to not run the whole convergence study.

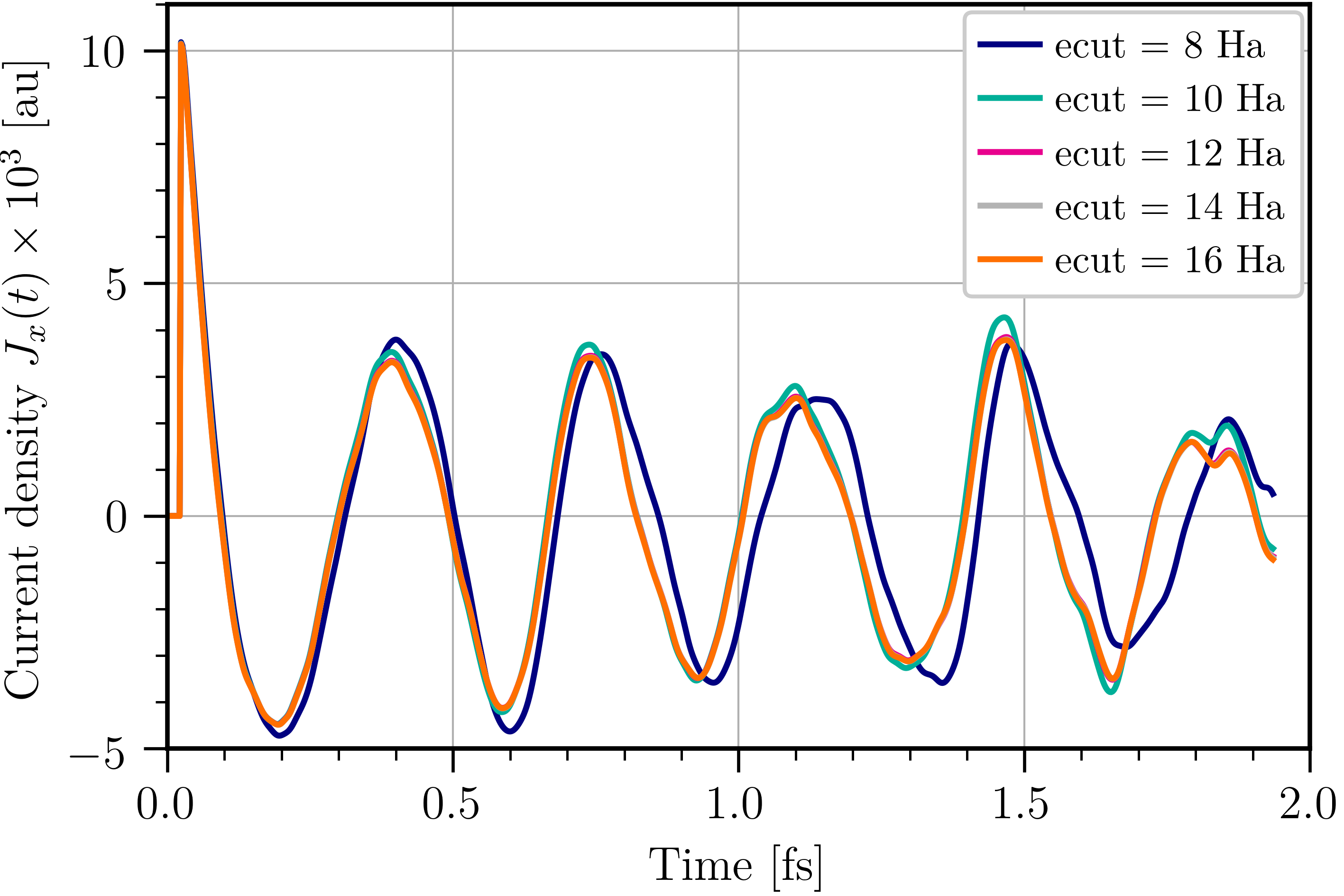

Let us start by studying the convergence of the current density with respect to the cutoff energy. To do so you can modify the trttddft_4.abi input file and run for different values of ecut maybe something like 8, 10, 12, 14 and 16 Ha. You should also increase ntime to a larger value to check the convergence of the current density on a sufficient propagation time. You can try using ntime around 800. We can perform this study keeping ngkpt to 2 2 2 to save computation time. If you do so and plot the current density you should get the same results as what is displayed on the following figure.
Clearly the current density is not too sensitive to the value of ecut and seems to be converged from ecut \(\gt 10\) Ha. To ensure that we remain relatively converged in terms of total energy and pressure we will keep ecut to 14 Ha in the following. The current density is even less sensitive to the value of pawecutdg and we will just keep it at twice the value of ecut that is 28 Ha in the following.

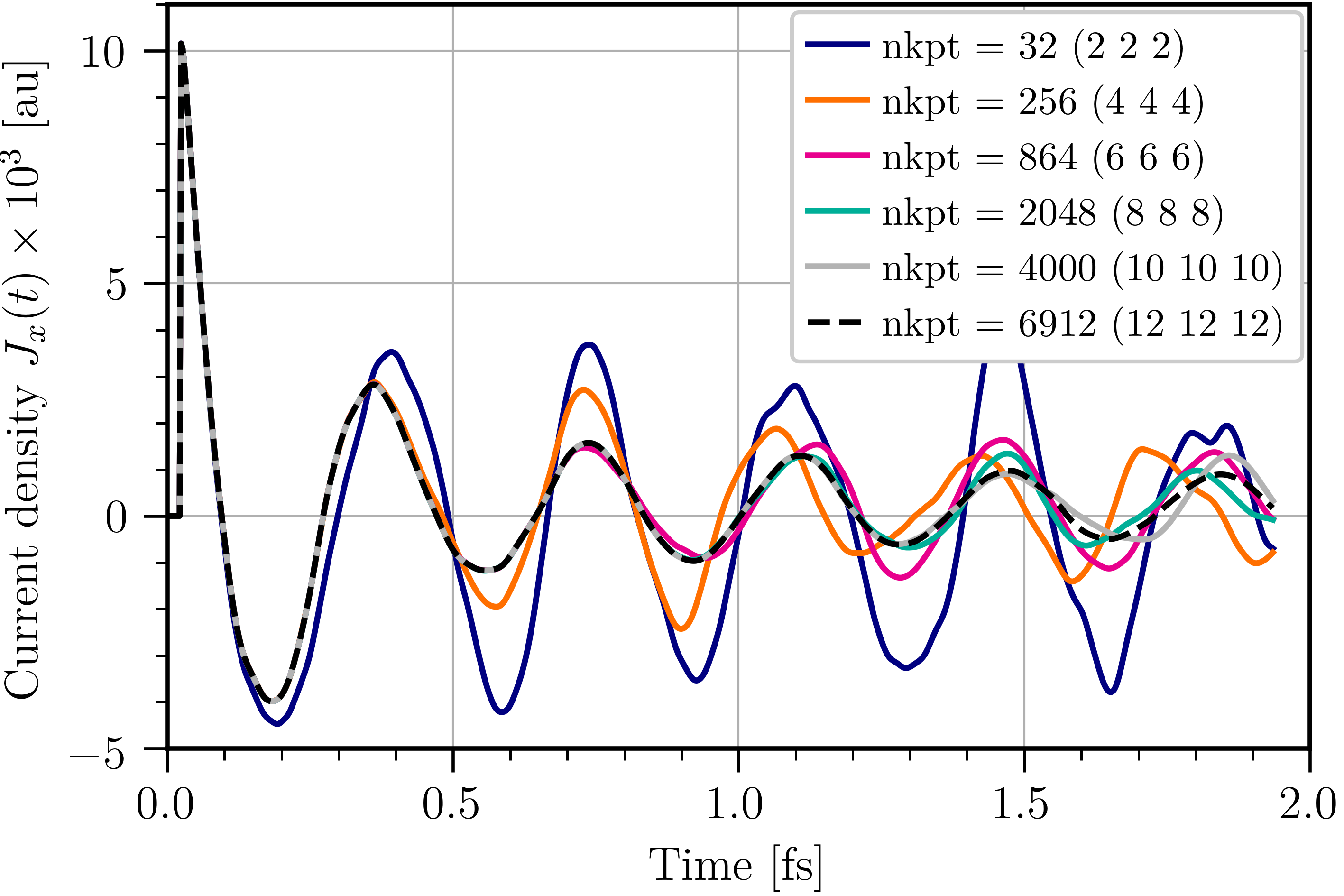

Now we switch to the convergence with respect to the number of \(k\)-points. Again, this is now going to take more time to run and you should consider running in parallel. We now run similar calculations keeping ecut constant and varying the value of ngkpt. You can maybe try 2 2 2, 4 4 4, 6 6 6 and 8 8 8 to start. You can use a lower value of ecut if you wish to decrease the computation time. You should find that the current density is significantly impacted by the value of ngkpt and that the previous value of 6 6 6 is not enough to converge it. The following figure shows the current density obtained with different number \(k\)-points keeping ecut fixed to 10 Ha and pawecutdg to 20 Ha.
The current density clearly requires a large number of \(k\)-points and it seems that we need to use more than 4000 \(k\)-points to converge over the integration time considered here. It appears that converging the current density at short times is relatively easy but longer trajectories require more \(k\)-points. That means high frequencies will be easier to converge but accessing low frequencies will be more demanding. In the following we will keep ngkpt to 8 8 8 with four shifts so 2048 \(k\)-points even though we see that we should use higher values to ensure a fine convergence of the current density.
5. Conductivity and dielectric function¶
The optical conductivity tensor \(\sigma_{\alpha\beta}\) can be obtained from the Fourier transform of the induced current density and the external electric field using the following relation \begin{equation} \sigma_{\alpha\beta}(\omega) = \frac{J_\alpha(\omega)}{E_\beta(\omega)}. \end{equation} This equation is the well-known Ohm’s law which translate the fact that, within linear response theory, the conductivity is the response function that links the induced current density and the applied external electric field. The dielectric tensor can then be obtained directly from the conductivity tensor using the following relation \begin{equation} \epsilon_{\alpha\beta}(\omega) = \delta_{\alpha\beta} + 4\pi i\frac{\sigma_{\alpha\beta}(\omega)}{\omega}. \end{equation}
A python script to perform the Fourier transform of the current density and compute the conductivity and the dielectric tensor called analyze_rtttddft.py is available in $ABI_HOME/scripts/post_processing. Let us first look at what we obtain already with the results from the previous convergence study on the current density by using the analyze_rtttddft.py script to analyze the results of one of your previous calculation. To do so you can run the following command
python3 $ABI_HOME/scripts/post_processing/analyze_rtttddft.py -c trttddft_4o_DS2_TDCURRENT -e dirac -ez 0.1 -d x -wc 0.01 -ts 1 -p 8
python3 $ABI_HOME/scripts/post_processing/analyze_rtttddft.py -h
Here we use already quite a few that should give some rather good results:
- -c gives the path to the file containing the current density (TDCURRENT file)
- -e dirac tells the script that the electric field is a Dirac pulse
- -ez gives the intensity of the applied impulse electric field (in atomic units)
- -d indicates by which direction of the electric field we wish to divide. It corresponds to the value of \(\beta\) in equation (6) and (7)
- -wc is the cutoff angular frequency \(\omega_c\) (in Ha) of a decaying exponential window \(\exp(-\omega_ct)\) that is applied to the signal. Such window leads to a convolution of the Fourier transform of the signal with a Lorentzian of width \(\Gamma=2\omega_c\) in frequency space and is mostly used to smooth/broaden the results.
- -ts applies a time shift discarding all times before ts which is mostly used to effectively set the time at which the electric field is applied to zero.
- -p is to use zero-padding on the signal. This will artificially increase the number of points used in the Fourier transform by a factor of p which in turn increases the number of frequencies and thus helps getting a better resolution in frequency space.

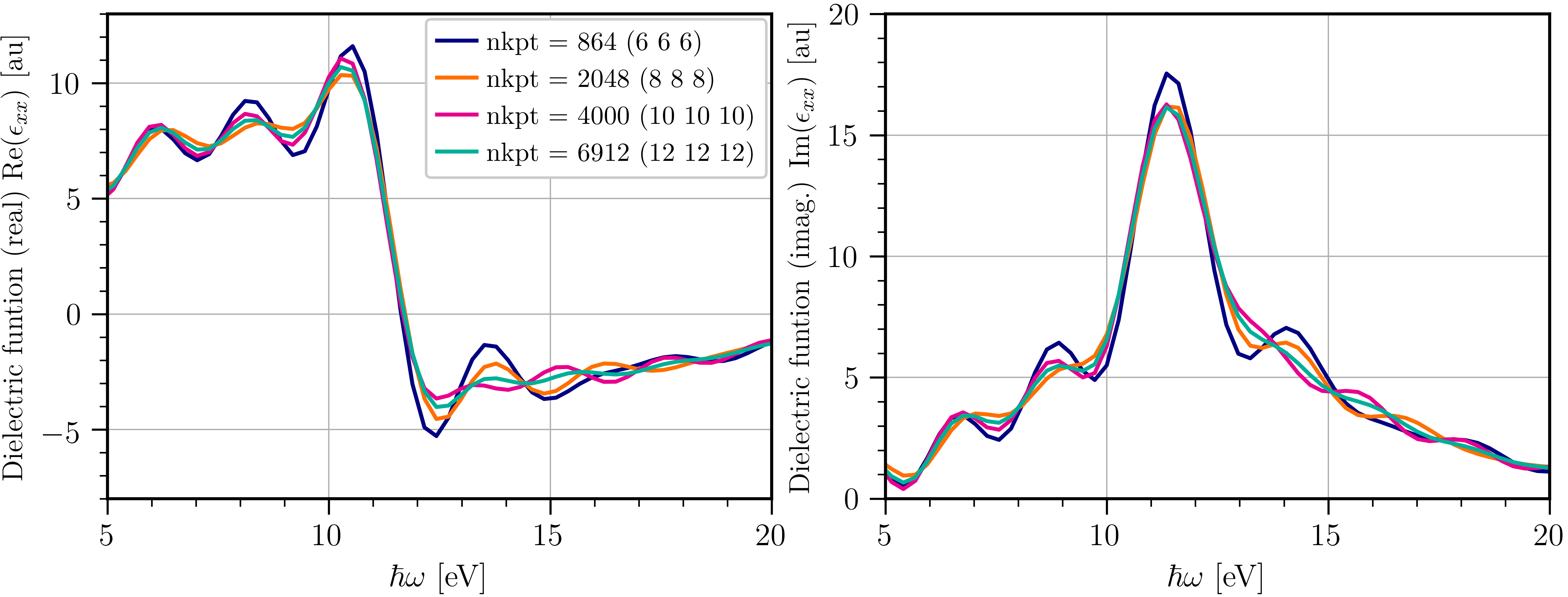

If you use the script to compute the dielectric function from the current densities obtained with different number of \(k\)-points during the convergence study of the previous section you should get results similar to the ones presented on the next figure.
Fortunately, the global shape of the dielectric function does not seem to be as sensitive to the number of \(k\)-points than the current density and it looks like a value of ngkpt to 8 8 8 is already able to give relatively well converged results. In the following, we will thus use ecut 14 and ngkpt 8 8 8 which should give acceptable results in a reasonable computation time. Clearly, if we are interested in fine details of the dielectric function than one should use a larger number of \(k\)-points and probably also a slightly higher value of ecut.
Before launching the final calculation to compute the conductivity and the dielectric function we should decide how long the trajectory should be. This is mostly defined by the frequency range we want to study and the resolution we need in frequency space. For diamond, we know that the dielectric function exhibits interesting features for energies \(\hbar\omega\) between 4 and 20 eV (see next figure). The maximum frequency that can be sampled is \(f_{max} = 1/dt\) which is directly related to the time step \(dt\). In our case we used a time step \(dt = 0.1\) au \(\approx 2.4\,10^{-3}\) fs, which corresponds to an energy of about \(1700\) eV that is much higher than what we are interested in. The minimum frequency that can be sampled is given by \(f_{min} = f_{max}/N\). So the total number of steps \(N\) will directly define the minimum frequency that can theoretically be accessed. As we are interested in energies down to a few eV, a 100 steps should already be enough. However this minimum frequency also defines the resolution in frequency space \(\Delta f = f_{min}\). This frequency step \(\Delta f\) needs to be small enough to accurately resolve the variations of the conductivity and the dielectric function. In practice here, it needs to be much smaller and we need to at least perform a few thousands steps (about 2000 steps should give good results).
Tip
You can easily restart a RT-TDDFT calculation using the td_restart input variable. Thus you can start with a relatively short trajectory first and increase its length as required. Note that it is also possible to artificially increase the frequency resolution by using zero-padding (-p option of the script analyze_rtttddft.py).

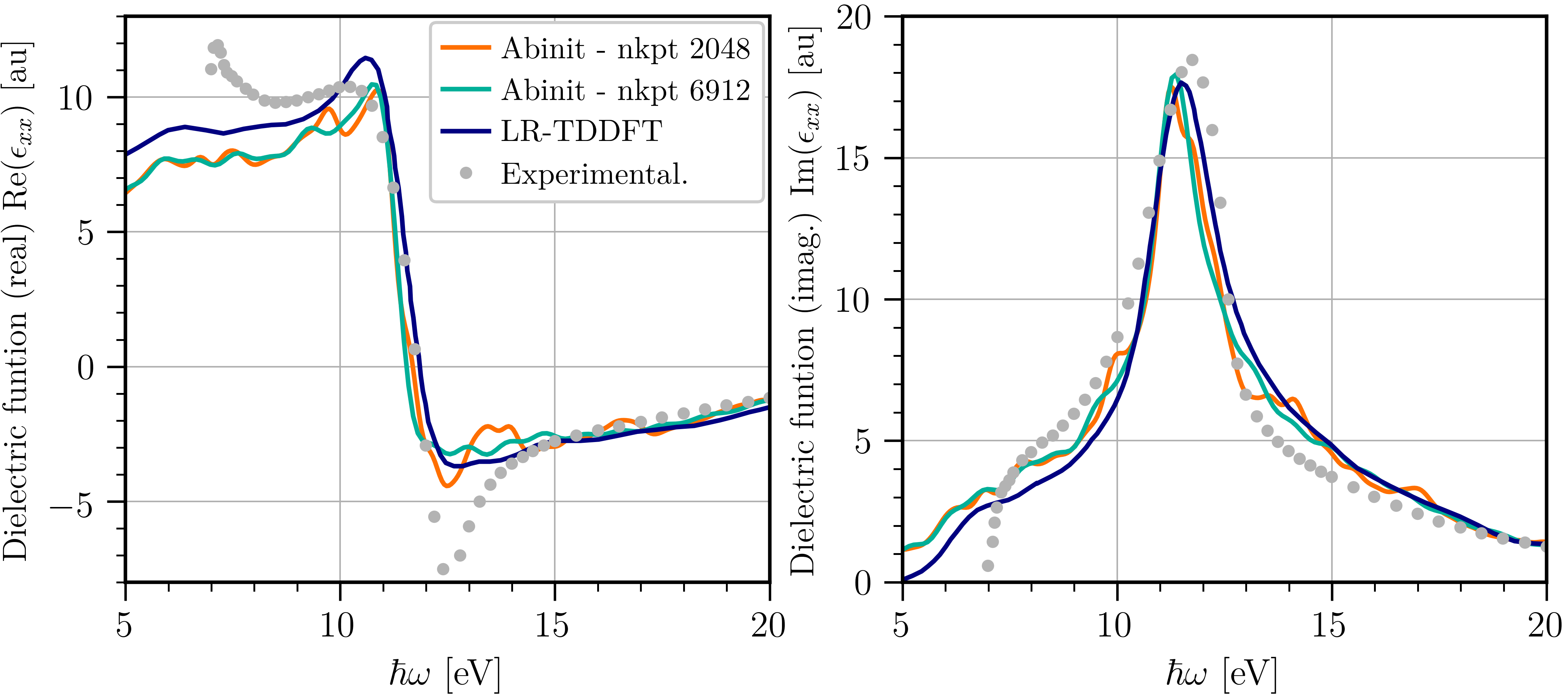

Now, we can launch our final calculation using ntime 2000, ngkpt 8 8 8 and ecut 14 to ensure acceptable convergence. Unfortunately, this is now quite a long calculation that can take more than an hour even if running on several cores. The dielectric function obtained after running such calculation is presented on the following figure (orange line). It is compared to the results from [Botti2004] obtained using linear-response TDDFT (LR-TDDFT) in the LDA approximation (blue line) and to experimental results (grey dots) from [Edwards1985].
Clearly, the implementation in Abinit is able to retrieve the correct dielectric function and compares well with LR-TDDFT using similar approximations. Moreover, the results we obtained are also quite close to the experimental ones. One can notice however that our spectrum is “more noisy” than the one obtained using LR-TDDFT. This effect can be mitigated by increasing the number of \(k\)-points as can be seen from the dielectric function obtained using a larger number of \(k\)-points (green line). In the case of diamond, TDDFT in the adiabatic approximation describes relatively well the dielectric function but that is not the case for all systems, see for instance [Botti2004] for different cases.
